The Stand
I was getting tired of always fiddling with the positioning of my phone on my wireless QI charger – so I decided to build a charging stand for it. I originally designed it for my Nexus 4, but it suffered a disasterous screen break a week ago. Luckily my replacement Nexus 5 works just fine it in as well.
I did some measurements and a sketch (was I ever rusty on my trig) :
-
- QI Charger Measurements
-
- Sketchup Design
Then I sent it over to the Dalhousie Library 3D Printing Service. It took them nearly 2 weeks, not sure why, but I got to pick it up today. Price was $3.25 for 41g of material (at $0.08/gram).
-
- The Stand (with support material)
-
- Removing the Support Material with Razor Blade
-
- The Charger, Stand, and Nexus 5
-
- Charger Installed
-
- Rear View
-
- Angled view
-
- Side View (with Nexus 5)
-

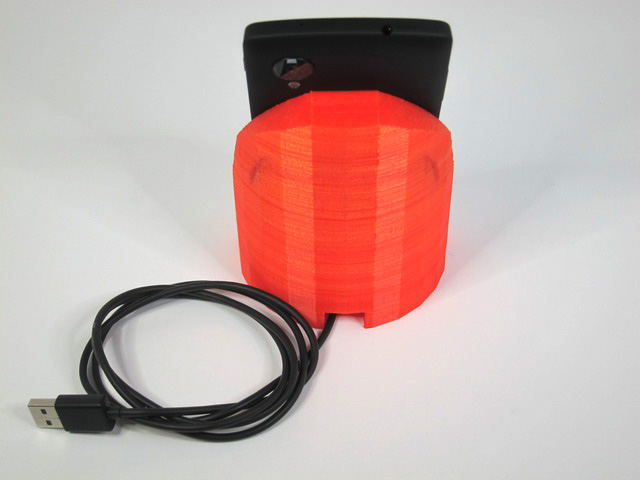

- Rear View
It even works for the Nexus 7 :
Nexus 7
-
- Nexus 7 Side View
-
- Nexus 7 Back
Some improvements to make for second version :
- Add some guides on the sides to keep phone centered horizontally.
- Give a little bit more room for the dug out portion where the charger sits. Currently there’s a bit of a hole on either side where I didn’t leave enough room.
- Not really happy with the colour. It was supposed to be red but turned out more orange. Maybe try other colours.
